This reference project documents 2 high-speed doors installed in Chonburi, with the following dimensions: W 1,500 x H 2,400 mm and W 950 x H 1,950 mm. It is based on project records and actual site photographs to help readers compare the installation with their own site conditions.
This project page is based on verifiable project records and actual site photographs. A project reference is used instead of the owner's name or the customer's personal information.
Wide and Narrow Openings in Storage Areas

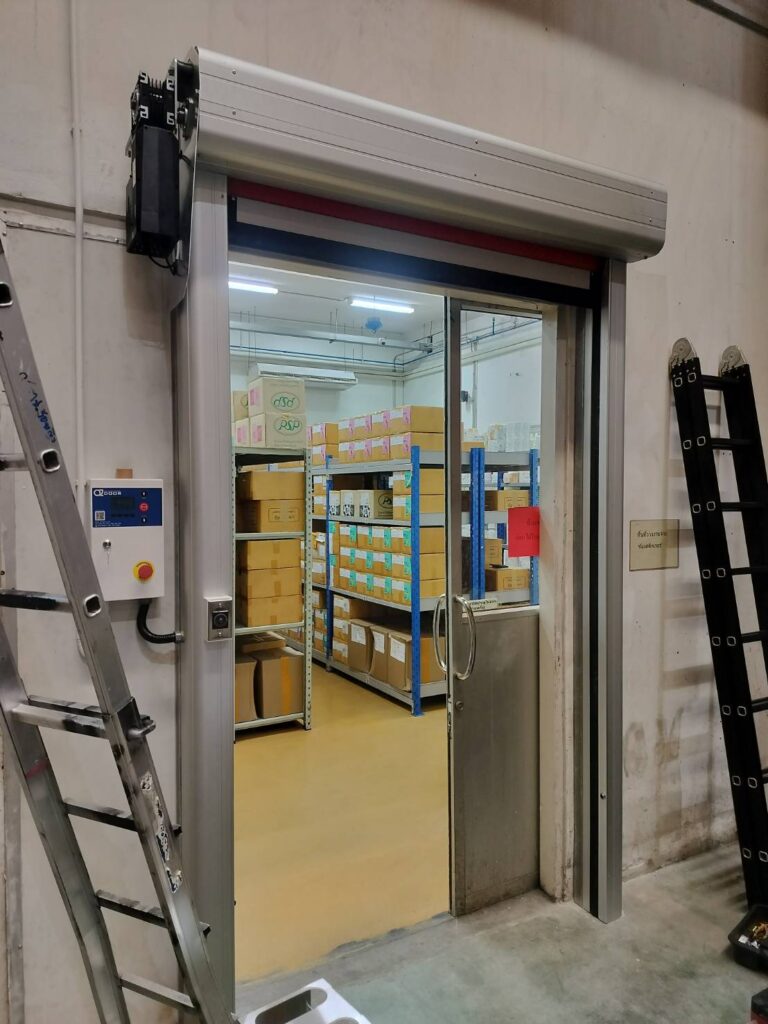

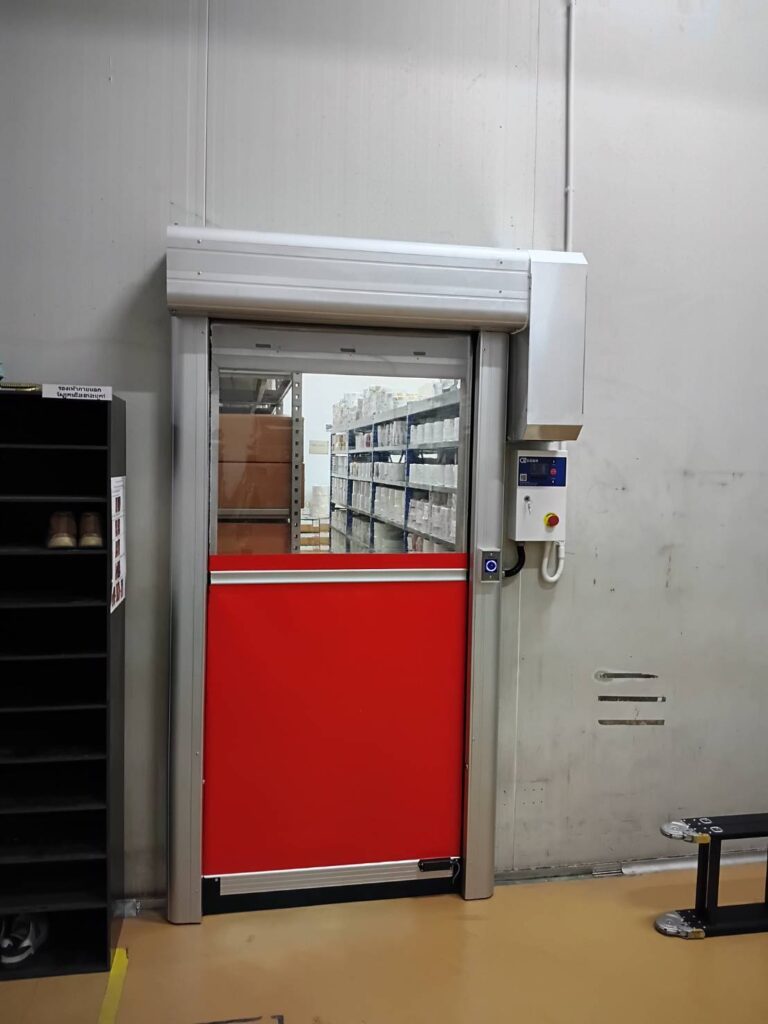

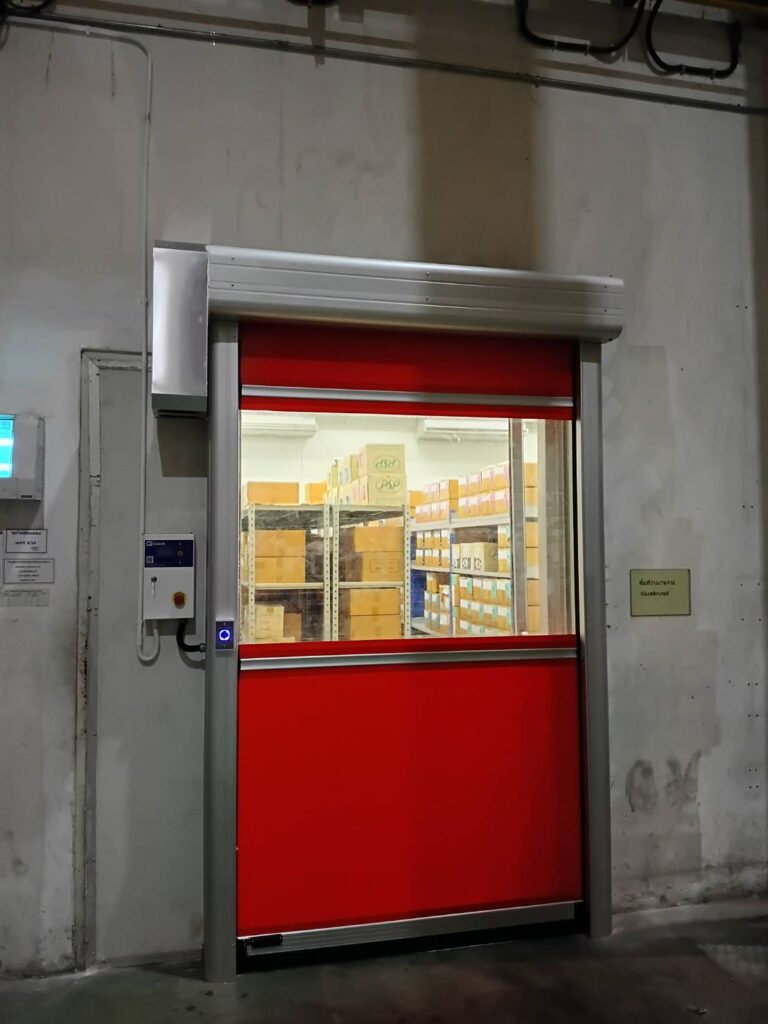

These photographs show red-curtain doors in two different opening arrangements, with shelving, boxes and containers inside. One opening has a concrete floor and a glass door farther inside. The other is beside a yellow floor near a shoe rack. Both curtains have clear sections that allow a view through the closed door. The surrounding details explain the different settings without estimating dimensions from photographic proportions.
Dimensions and Equipment in the Purchase Order
Purchase order 2606923 lists one high-speed door measuring W 1,500 x H 2,400 mm and another measuring W 950 x H 1,950 mm. It also lists touchless switches for entry and exit and two bottom safety sensors. The project location is Chonburi, as confirmed in the updated project information; a billing address has not been used as a substitute for the installation location.
Side Equipment and What the Images Establish

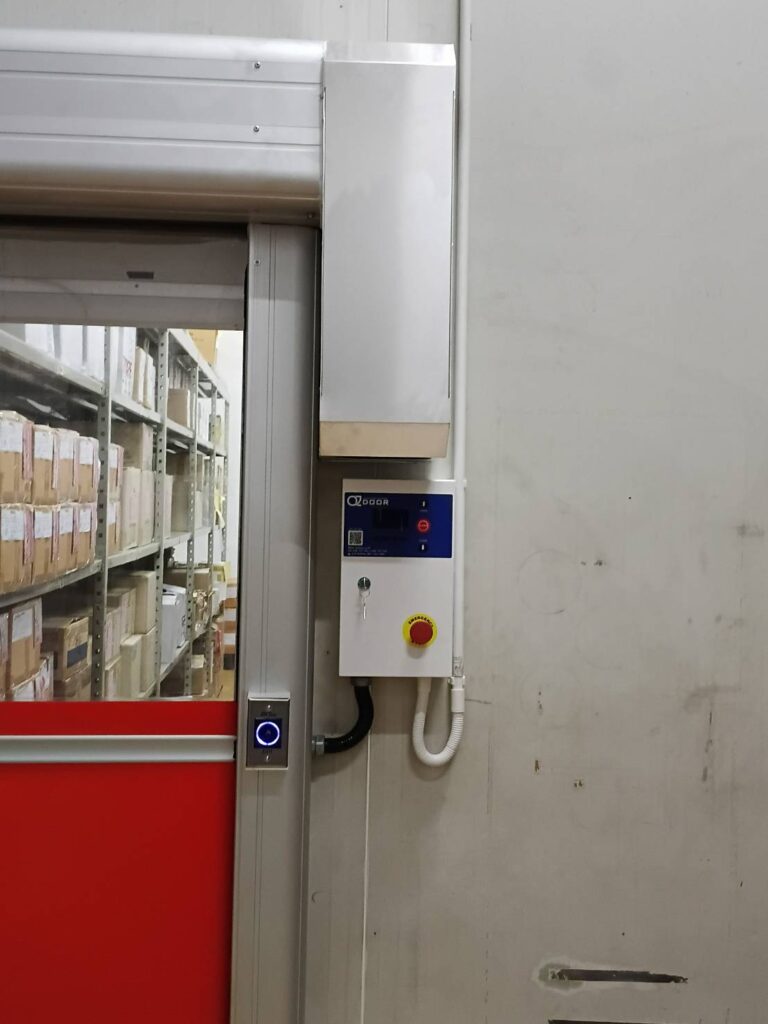

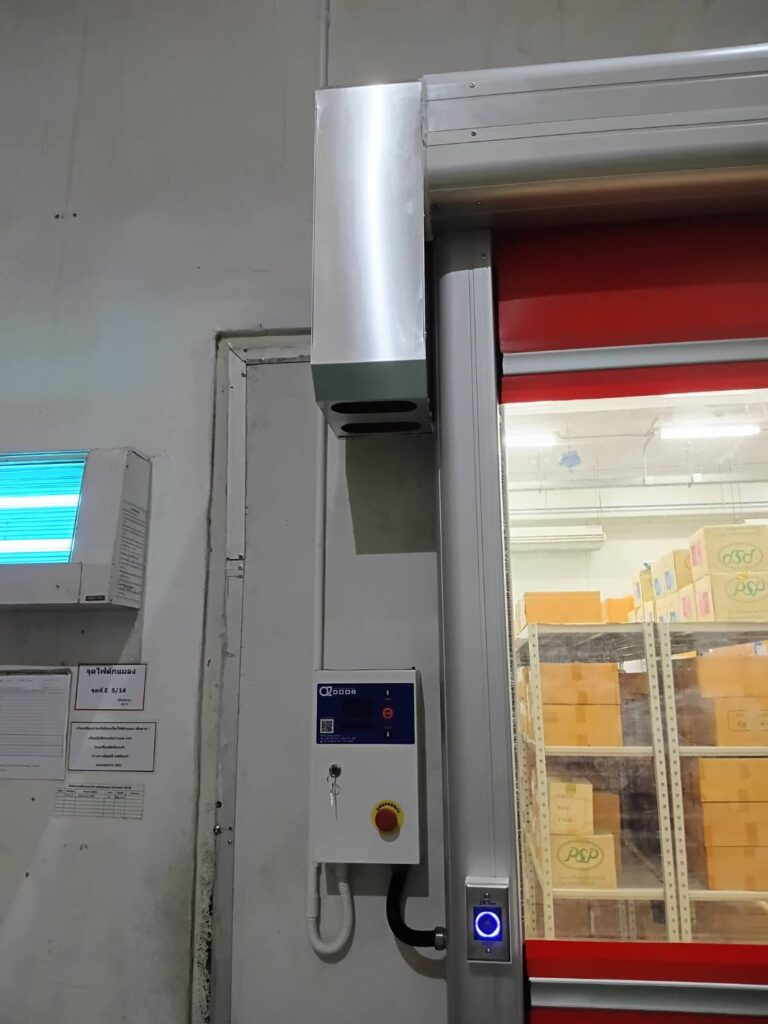

The side views show the control cabinet, switches and guides next to the curtain. The video records the narrower door opening and closing with pedestrian passage. These images do not confirm switch configuration or sensor test results and do not replace acceptance documentation. This reference therefore focuses on the two documented sizes and the visible entrance arrangements, without attributing an unsupported submodel or performance specification.
