High Speed Doors for Factories, Warehouses and Cleanrooms in Thailand
OZ Door designs, manufactures, and installs high speed doors in Thailand for factories, warehouses, cleanrooms, food and pharmaceutical facilities, logistics sites, and cold-chain areas. The right model depends on real site conditions such as forklift traffic, dust and insects, temperature control, wind exposure, opening size, and safety control requirements.
Start with the Standard, Zipper, and Fold-up models below, then move to the budget guide, real project references, or send your site photos for model advice.
OZ High Speed Doors in Real Factory Applications
This video shows high speed doors operating in Thai factories, warehouses and cold-chain facilities, including opening speed, sealing performance, forklift traffic flow, safety sensors and automation control integration.
OZ Door High Speed Door Models
Different door models for different requirements: airflow control, hygiene, wind resistance and automation integration.

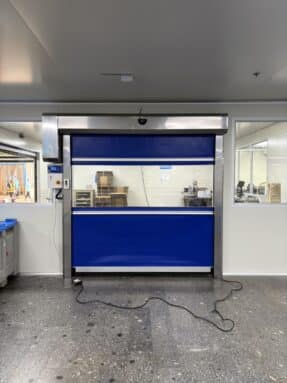

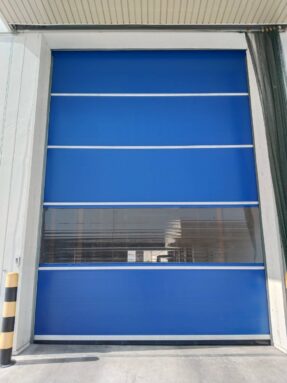

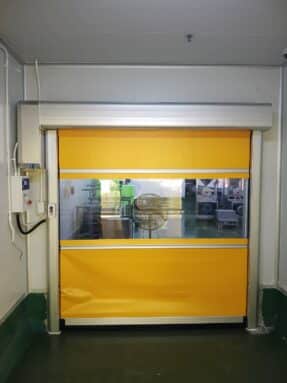

Standard High Speed Door
PVC roll-up door with aluminium wind bars for internal and external openings. Cost-effective and versatile.
Best for: GMP, pharma, food, packaging, clean corridors
- 1.0–2.0 m/s opening speed
- Wind-resistant with reinforced bars
- Up to 6 × 6 m opening size
- Sensor & PLC integration
Zipper High Speed Door
Indoor door with repairable zipper system. Air-tight sealing for clean environments where hygiene matters most.
Best for: GMP, pharma, food, cleanrooms, air pressure control
- Fully enclosed side guides
- Air-tight sealing
- Up to 4 × 4 m opening size
- Repairable zipper (manual/auto)
Fold-up High Speed Door
Heavy-duty door for large exterior openings. Curtain stacks vertically for maximum wind resistance.
Best for: Logistics, warehouses, airports, hangars, heavy industry
- Very high wind load capacity
- No practical size limit
- Reinforced structure
- Primary outdoor option
High speed doors start around ฿70,000 (delivery and installation quoted by site)
Final budget depends on opening size, door model, sensors, accessories and site conditions.
Need real project examples or site advice before choosing a model?
High Speed Door Installation, Repair & PM Support
OZ Door provides a one-stop high speed door service from site assessment and in-house manufacturing to installation, commissioning, repair, PM and after-sales support. We evaluate the real opening, traffic flow, safety requirements and operating environment, manufacture the door system directly, keep the required parts in Thailand, install it on site, and continue supporting the door after handover. Installation, repair and PM support may also be available for selected other-brand systems when site conditions, parts availability, controller access and safety requirements are suitable. See our installation and repair service for full coverage.
Site Assessment & Model Selection
We assess the opening size, structure, traffic frequency, forklift movement, dust, temperature, wind exposure and safety control requirements, then recommend the right high speed door model, curtain type, sensors and installation approach.
In-House Manufacturing & Thai Parts Stock
We manufacture high speed door systems directly and keep the required parts in Thailand, including curtain materials, frame components, motors, controls, sensors and service parts, so projects and after-sales work are not delayed by overseas ordering.
Installation & Commissioning
Our team installs the door structure, curtain, motor, sensors and control panel, then checks alignment, safety devices and operating speed so the system works reliably from the first day of operation.

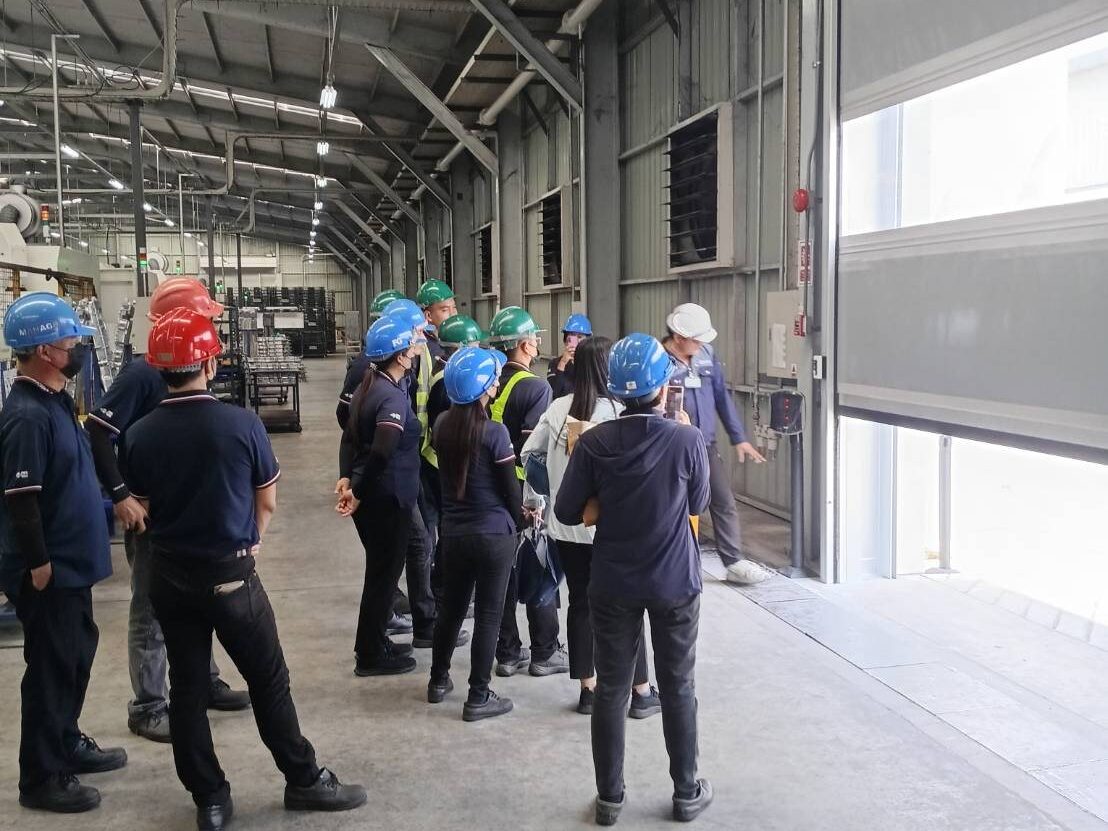

Repair, PM & Local Support
After installation, we support inspection, tuning, alignment, repair, parts replacement and scheduled PM through a local team in Thailand for factories and warehouses that need dependable long-term service.
Why Choose OZ Door
Application-specific design, quality components and local service for reliable operation.
15+ Years
🛡️ Engineering Mastery
Since 2011, specialized in industrial and residential doors.
2000+ Projects
🏭 Across Thailand
Completed across factories, warehouses, cold rooms and homes.
100% In-Stock
⚙️ Genuine Spare Parts
Key components kept in stock for fast service and maintenance.
3,535+ Days
👷 Accident-Free
Safety excellence at every job site installation.
🛡️ 2-Year Warranty on all high speed door installations — motor, curtain, and control system included
Industries Using High Speed Doors in Thailand
High speed doors improve product quality, hygiene, energy efficiency and automation in key industries.
Food, Beverage & FMCG
Separate raw material, processing and packaging zones under GMP and HACCP. Reduce dust, insects and temperature fluctuation for better hygiene and product quality.
Automotive & Electronics
Used between production lines, paint shops, assembly areas and parts storage. Stable airflow and fast opening protect sensitive components and improve process quality.
Logistics & Cold Chain
Fast sorting and internal movement in distribution centers and cold storage. Reduce energy loss and keep goods moving efficiently through the facility.
Automation & Robotics
Integration with conveyors, AGVs, AMRs and robotic cells. PLC signals, sensors and interlocks synchronize doors with machines for improved line efficiency.
*GMP zoning helps reduce contamination risk in production areas. WHO Good Manufacturing Practice (GMP)
*HACCP-based hygiene control supports food safety in production and logistics. Codex: General Principles of Food Hygiene (HACCP)
Safety Sensors & Controls
Complete your high speed door installation with safety devices and activation systems.
High speed doors work best when paired with the right safety and activation equipment. OZ Door supplies photocells, radar sensors, light curtains, loop detectors, push buttons, pull cords, and remote controls—all compatible with our door systems.
- Safety: Photocells, light curtains, safety edges
- Activation: Radar sensors, loop detectors, push buttons
- Control: Remote controls, PLC integration, traffic lights
Curtain PVC Design & Cover Options
Customize your door curtain with colors, vision panels, mesh options, and company logos.
- Colors: Orange, Yellow, Blue, Grey, Green, White, Black, Custom
- Vision: Clear panels, tinted windows, mesh screens
- Thickness: 0.9mm standard, 1.6mm heavy-duty, 5mm insulated
- Branding: Custom logo and lettering with special PVC paint
Technical Specifications
Technical data for the OZ HSD. Values may vary depending on size and configuration.
Servo System
| Motor Type | PMSM AC (Permanent Magnet Synchronous Motor) |
| Power Input | 750W / 1500W / 2200W |
| Power Supply | 220V ±10% |
| Reducer | Worm Gear (RV50 1:10/1:15 or RV75 1:15/1:20) |
| Max Rotation Speed | 1500–2000 rpm |
| Max Torque | 60 / 120 / 240 Nm |
| Protection Rating | IP54 – IP65 |
| Working Temperature | -35°C to +60°C |
| Limit Switch | Absolute Encoder |
| Max Cycles per Day | 1000 – 2000 |
Door Specifications
| Max Size | Please refer to detailed model |
| Opening Speed | Please refer to detailed model |
| Safety Response Time | 2.5 ms |
| Wind Resistance | 20 m/s (EN 12424 Class 2, varies by door size) |
| Protection Rating IP ratings follow IEC 60529 definitions for protection against dust and water. IEC IP rating (Ingress Protection) | IP55 |
PVC Sheet
| Material | Polyvinyl Chloride (PVC) |
| Thickness | 0.9mm (1100 g/m²) or 1.6mm (1930 g/m²) |
| Colors | Orange, Yellow, Blue, Grey (custom colors available) |
| Temperature Range | -5°C (0.9mm) / -30°C (1.6mm) to +70°C |
| Fire Resistance | B2 (0.9mm) / B1 (1.6mm) |
| Features | UV treatment, waterproof, anti-bacterial, cold resistance |
Frame & Cover
| Frame | 2–3mm AL6063-T5 Aluminum, Anodized Silver |
| Cover | 2mm AL6063-T5 Aluminum, Anodized Silver |
| Optional | SUS304 Stainless Steel or Painted Steel |
Download Catalog
Technical data, standard sizes, options and recommended applications for factories and warehouses in Thailand.
The catalog includes data for Standard, Zipper and Fold-up high speed doors, plus example layouts showing which door type to use in each factory zone.
- Standard dimensions and clear opening sizes
- Motor, control and safety options
- Recommended applications by industry
Frequently Asked Questions
When should I use a high speed door instead of a roller shutter?
Use a high speed door when the opening cycles frequently and you need better control of airflow, temperature, hygiene, or dust/insects. If forklifts or people pass many times per hour, a high speed door usually improves efficiency and separation between zones.
How fast do OZ Door high speed doors open?
Typical opening speeds are 1.0–2.0 m/s depending on model and size. Faster cycles reduce waiting time and minimize air exchange between areas.
Are high speed doors safe for people and forklifts?
Yes. We can equip doors with light curtains, safety edges, photocells, and optional radar or loop detectors. We also match activation and logic to your traffic pattern to improve safety.
Can high speed doors be used for cold rooms or freezers?
Yes. We offer cold-room compatible options and configurations designed to reduce cold loss and support cold-chain operations. Share your target temperature and traffic flow and we will recommend the right model.
What maintenance do high speed doors require?
We recommend periodic inspection of the motor/inverter, safety devices, curtain condition, guides, and fasteners. Preventive maintenance plans are available based on cycle frequency to maximize uptime.
Can you integrate high speed doors with PLC, interlocks, or access control?
Yes. Our doors can integrate with PLC signals, interlocks, traffic lights, and access control. We design integration so the door works safely with your existing equipment and processes.
Planning new high speed doors or upgrading existing openings?
Send us your layout, photos and requirements. Our team will recommend suitable door types and provide a detailed quotation.
