High-Speed Doors in Phetchaburi | Project OZ-2605790

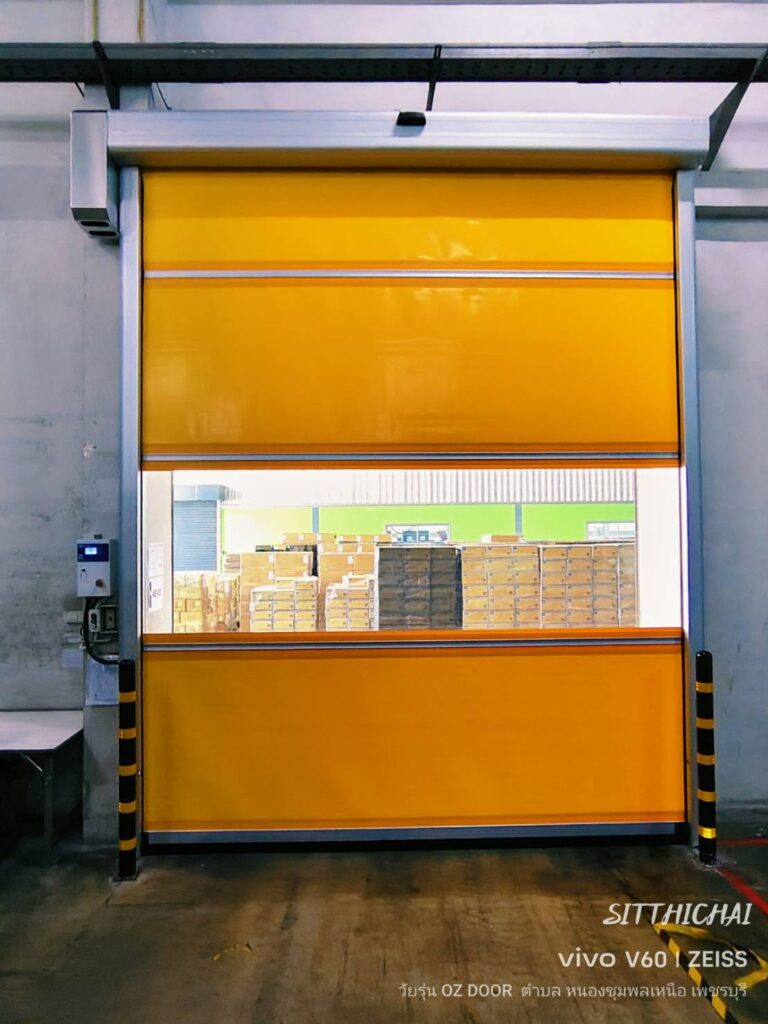

Yellow high-speed door with a clear strip at a warehouse opening
Yellow curtain in the closed position, with stored goods visible behind the clear strip.

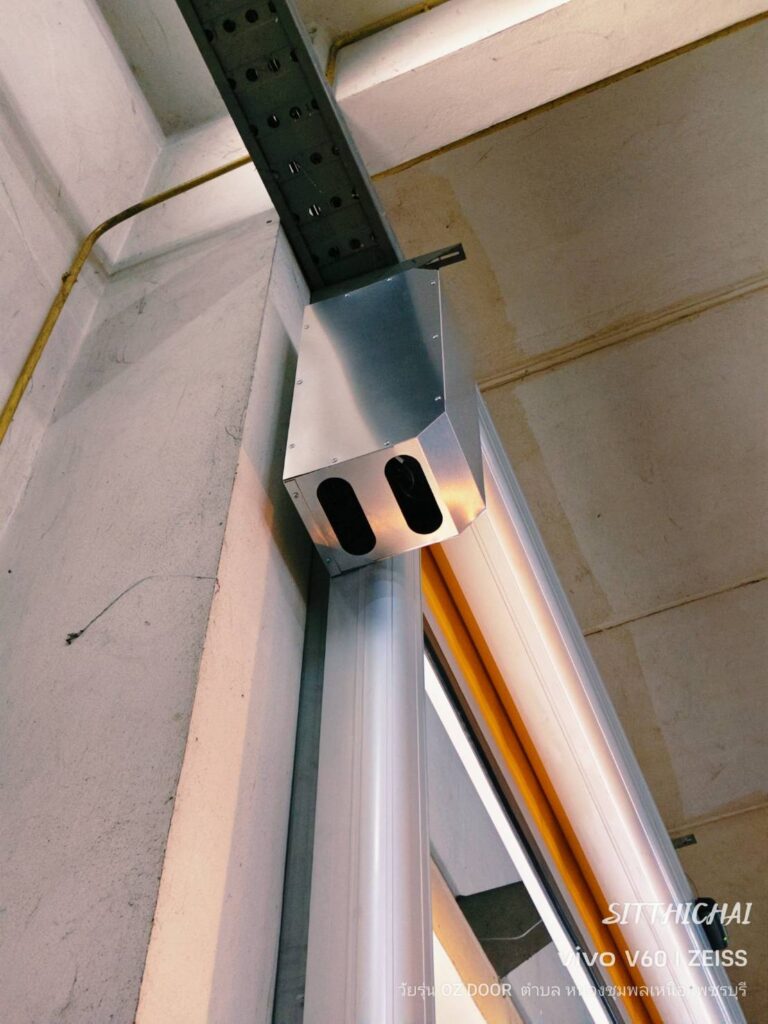

Upper hood and top of the yellow curtain
Detail at the top of the opening, showing the hood in relation to the guides and curtain.

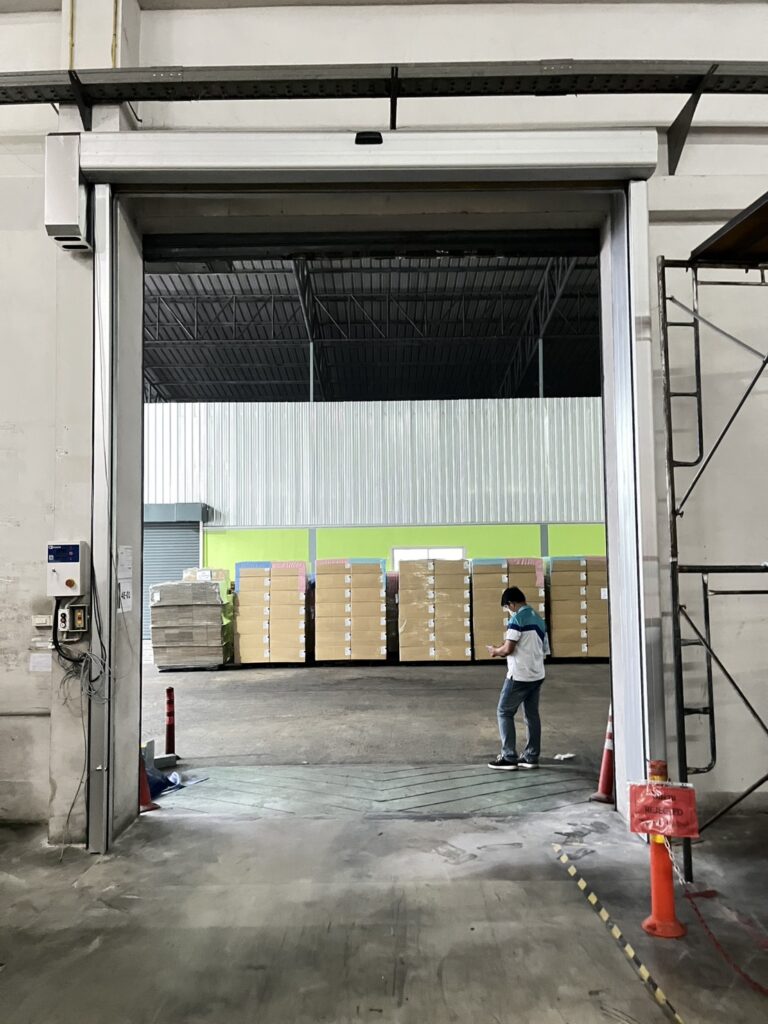

Open doorway leading to stored goods and pallets
Front view of the warehouse opening with the curtain raised, revealing the passage and pallets inside.

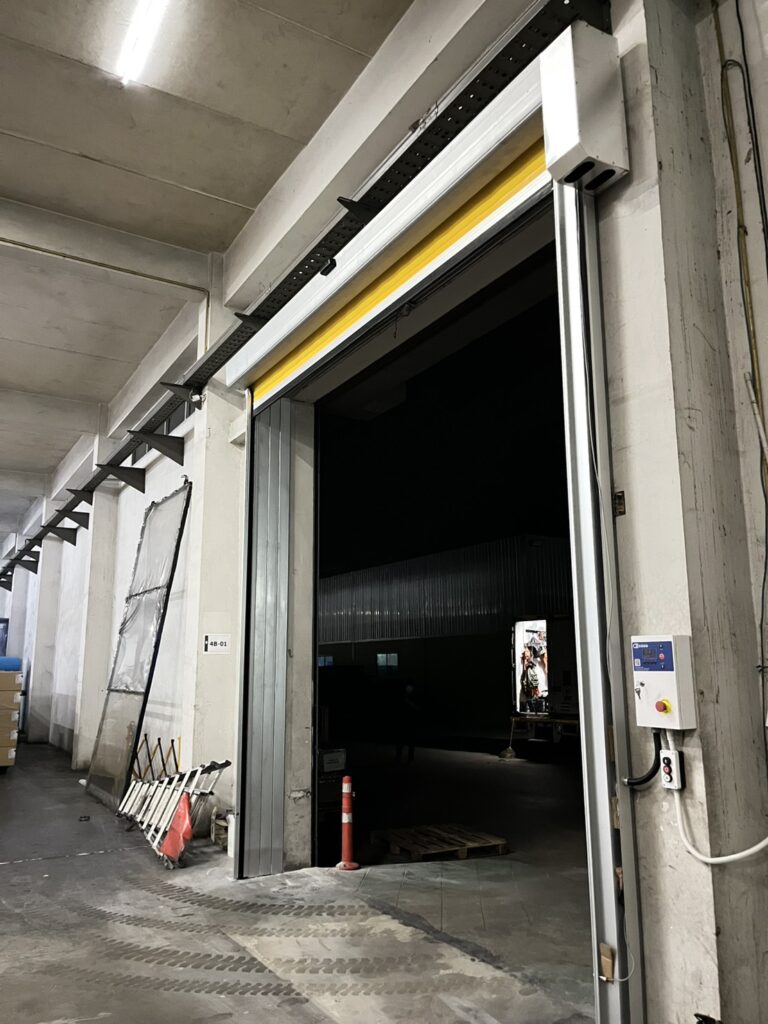

Side guide beside the warehouse opening
An angled view of the doorway showing the wall alongside the entrance.

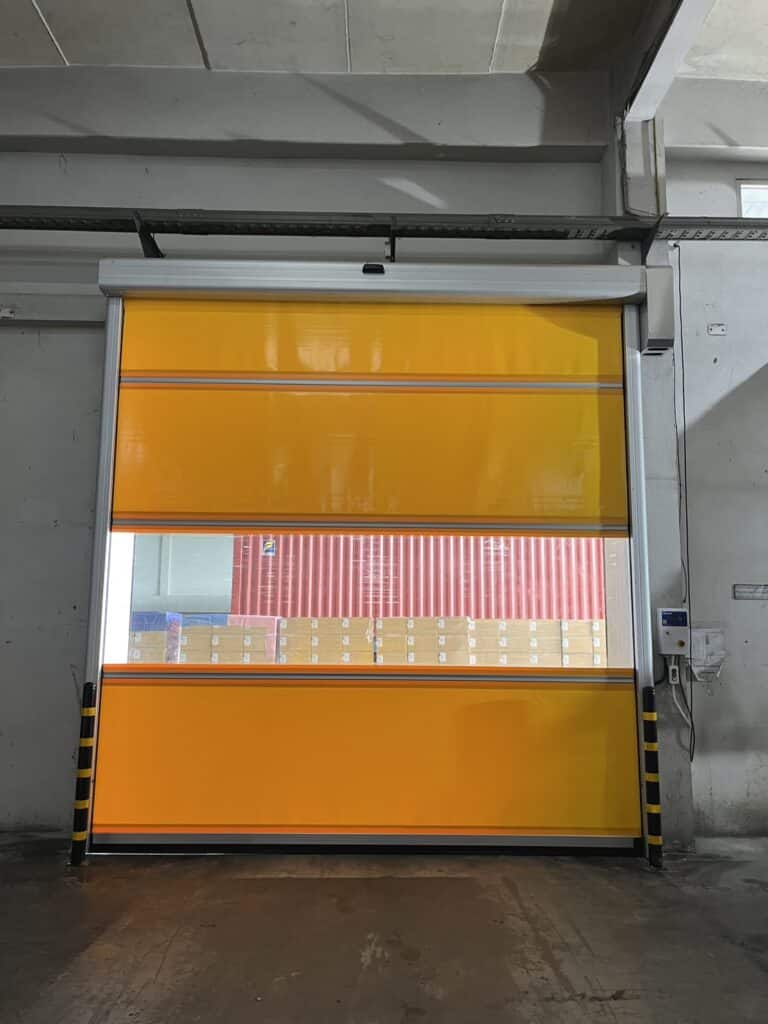

Yellow curtain and control unit beside the opening
Curtain front and adjacent equipment, showing their arrangement around the opening.
Video of a forklift passing through the yellow-curtain door, followed by the curtain closing.

This reference project documents 2 high-speed doors installed in Phetchaburi, with the following dimensions: W 3,270 x H 4,100 mm and W 3,920 x H 4,100 mm. It is based on project records and actual site photographs to help readers compare the installation with their own site conditions.

This project page is based on verifiable project records and actual site photographs. A project reference is used instead of the owner's name or the customer's personal information.

Yellow Curtains at the Warehouse Entrance

The site photographs show yellow curtains with horizontal clear strips, with pallets, boxes and goods stored inside. The side view shows the height of the opening in relation to the wall and storage area. The different views distinguish the closed curtain from the clear passage when it is raised, but the photographs do not provide a scale for assigning the documented dimensions to each individual door.

Two Widths Listed in the Quotation

Quotation 2605790 lists two high-speed doors, 3,270 mm and 3,920 mm wide, both 4,100 mm high. It also lists radar for entry and exit, installation of two units and delivery to Phetchaburi. The quantities and dimensions follow those line items; no submodel is inferred from the shape of the hood or the accessories.

Video of Forklift Passage

Part of the video shows a forklift passing through the opening before the yellow curtain lowers. This records use of the passage at that moment, rather than confirming radar detection range, closing-delay settings or collision-protection test results. When comparing the installation with another building, both the opening width and the approach area should be considered. Site video does not replace a vehicle-route assessment or acceptance testing.
