This reference project documents 1 high-speed door installed in Chachoengsao, with the following dimensions: W 1,800 x H 2,200 mm. It is based on project records and actual site photographs to help readers compare the installation with their own site conditions.
This project page is based on verifiable project records and actual site photographs. A project reference is used instead of the owner's name or the customer's personal information.
A Roller Conveyor in Front of the Opening

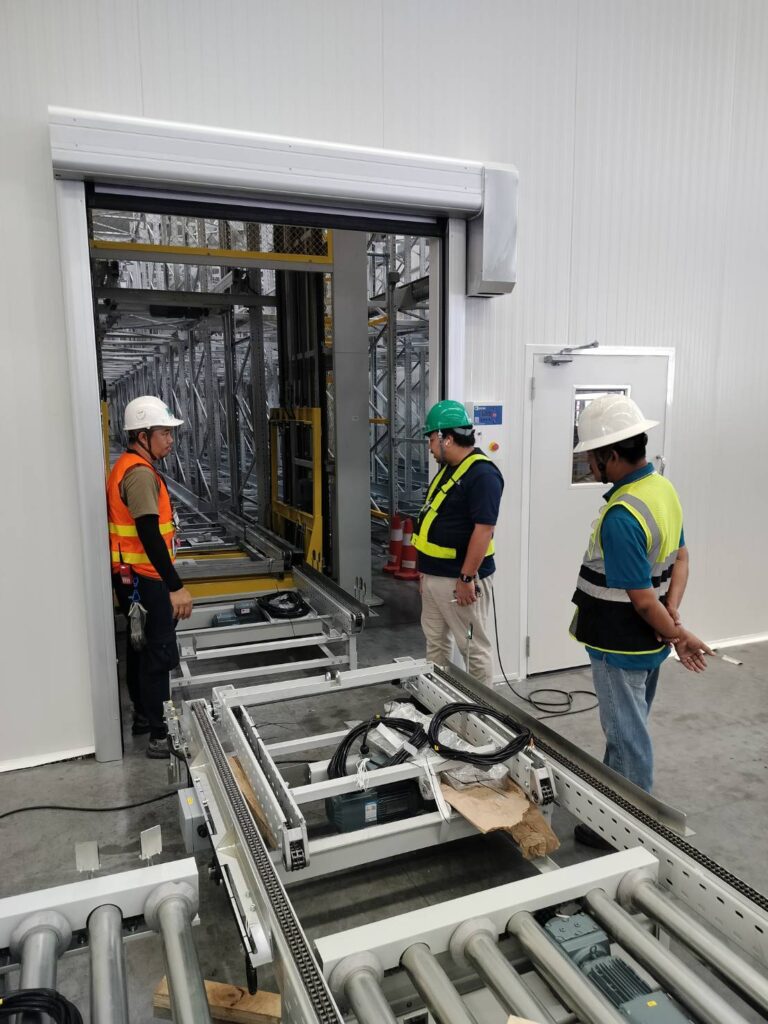

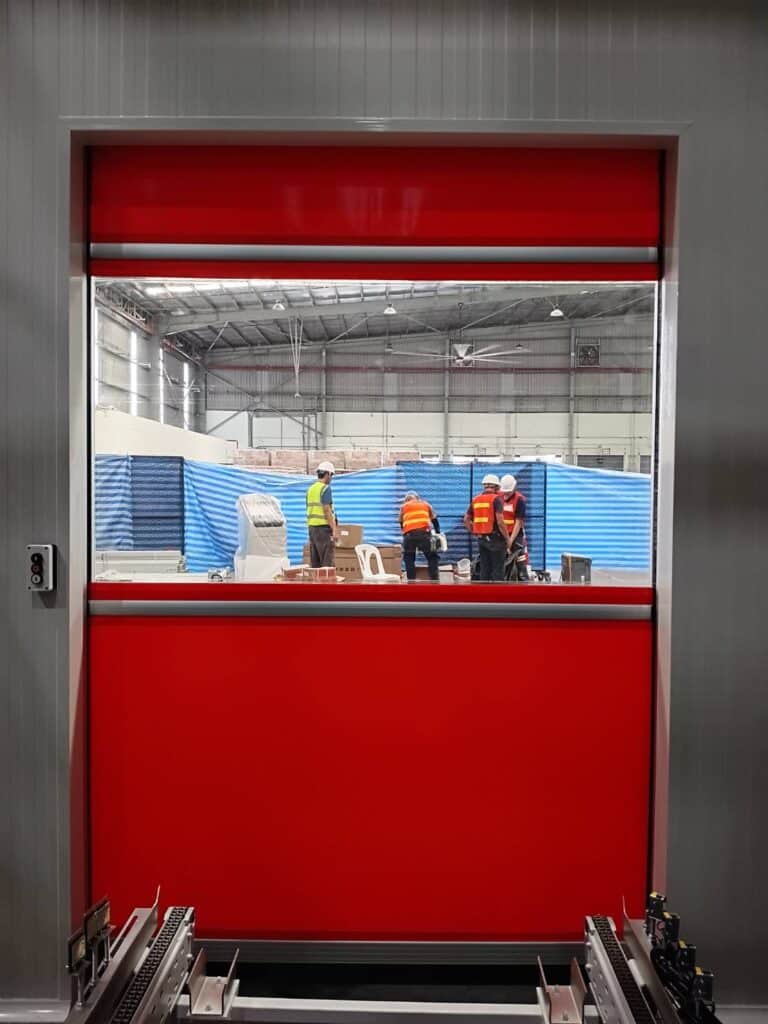

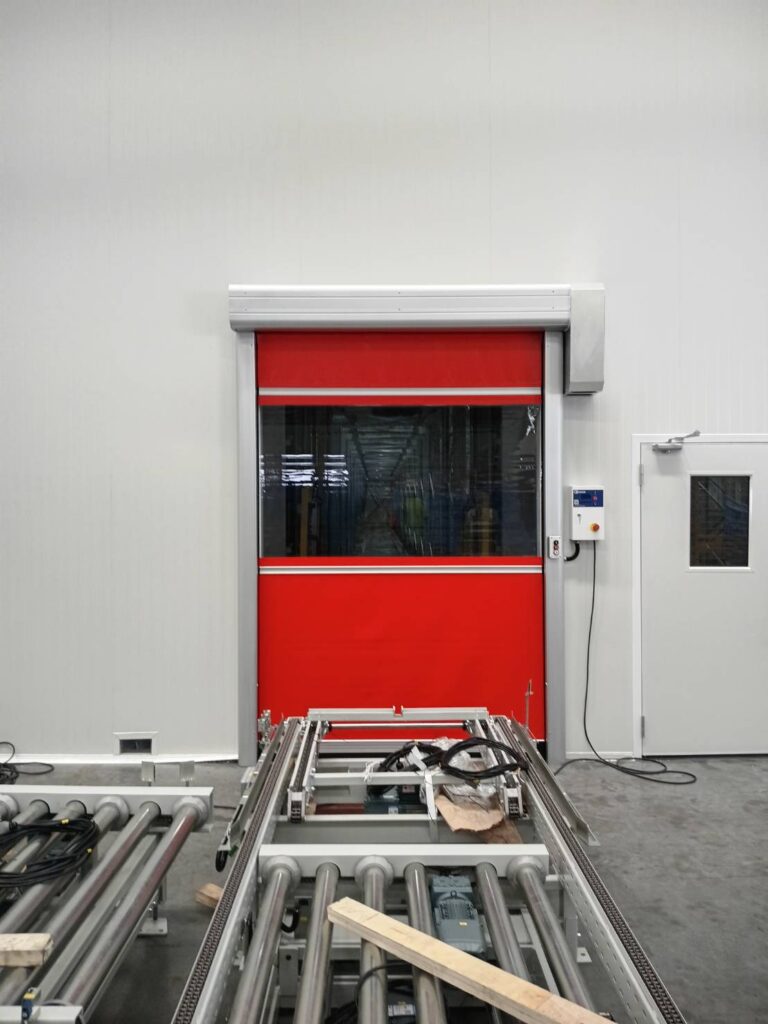

A distinctive feature of this installation is the roller conveyor extending up to the doorway. The red curtain has a large horizontal vision panel, allowing the shelving and space on the other side to remain visible when the curtain is closed. The wider view also shows a white personnel door on the right, distinguishing the high-speed opening from the adjacent pedestrian route. This does not establish that the door controls are linked to the conveyor.
Documented Door Specification and Scope
Quotation 2604650 lists one High Speed door, with installation and delivery to Chachoengsao. The item dimensions are 1,800 mm wide and 2,200 mm high. No specific submodel is stated, so this project is presented simply as a high-speed door installation. The curtain colour and vision panel are described from the photographs, rather than inferred from a general specification sheet.
Door Movement and Conditions at the Time of Recording

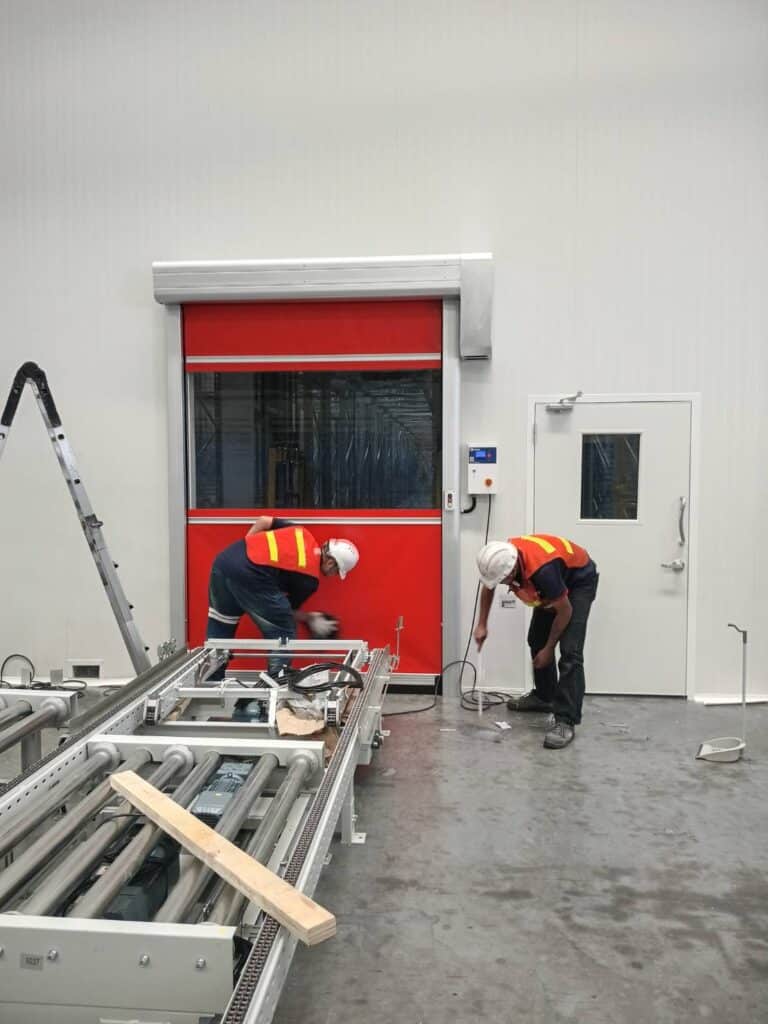

The video shows the curtain moving up and down above the roller table. Some photographs also show personnel and materials in front of the opening. These details document the site at the time of recording; they do not confirm final acceptance, the configured operating speed or control integration with other equipment. The photographs and video are not a substitute for system test results and should be read alongside the dimensions in the project records.
