Increased interest in garage doors
If you analyze Google Trends over the past decade about garage doors, you can see that about 30% of people’s attention is increasing. There are many reasons for this, but in my opinion, residential movement from the city center to the provinces, to build a charging station only for oneself due to the distribution of electric cars, improved the income level of people around the world, and expanding the garage door market.
So in this post, I would like to talk about the types of garage doors that people are interested in and how it works.
What is a garage door?
A garage door is an entrance door to parking place. Basically, the requirement for a garage door is
- The door opens automatically using the remote control
- The door can also be opened manually.
- neat appearance, etc.
Recently, various companies are presenting types of garage doors in different styles, and customers have more choices.
Types of garage doors
Opening and Closing Types

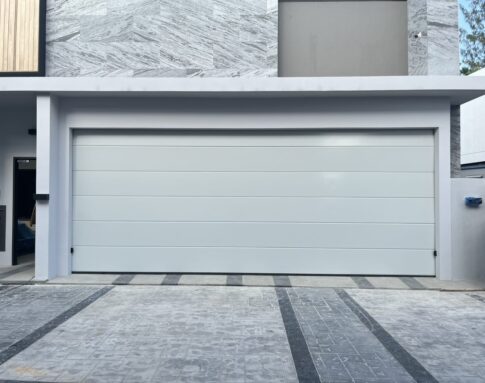

Standard garage door
In the most basic and commonly used manner, each panel goes up along the rail. Depending on the angle of the rail, the type can be distinguished in detail by the standard, high lift, and vertical type, but the standard type is usually used for household purposes. It has a stable structure, easy opening and closing, and a relatively low price, but when the door is opened, the lights are covered on the top.

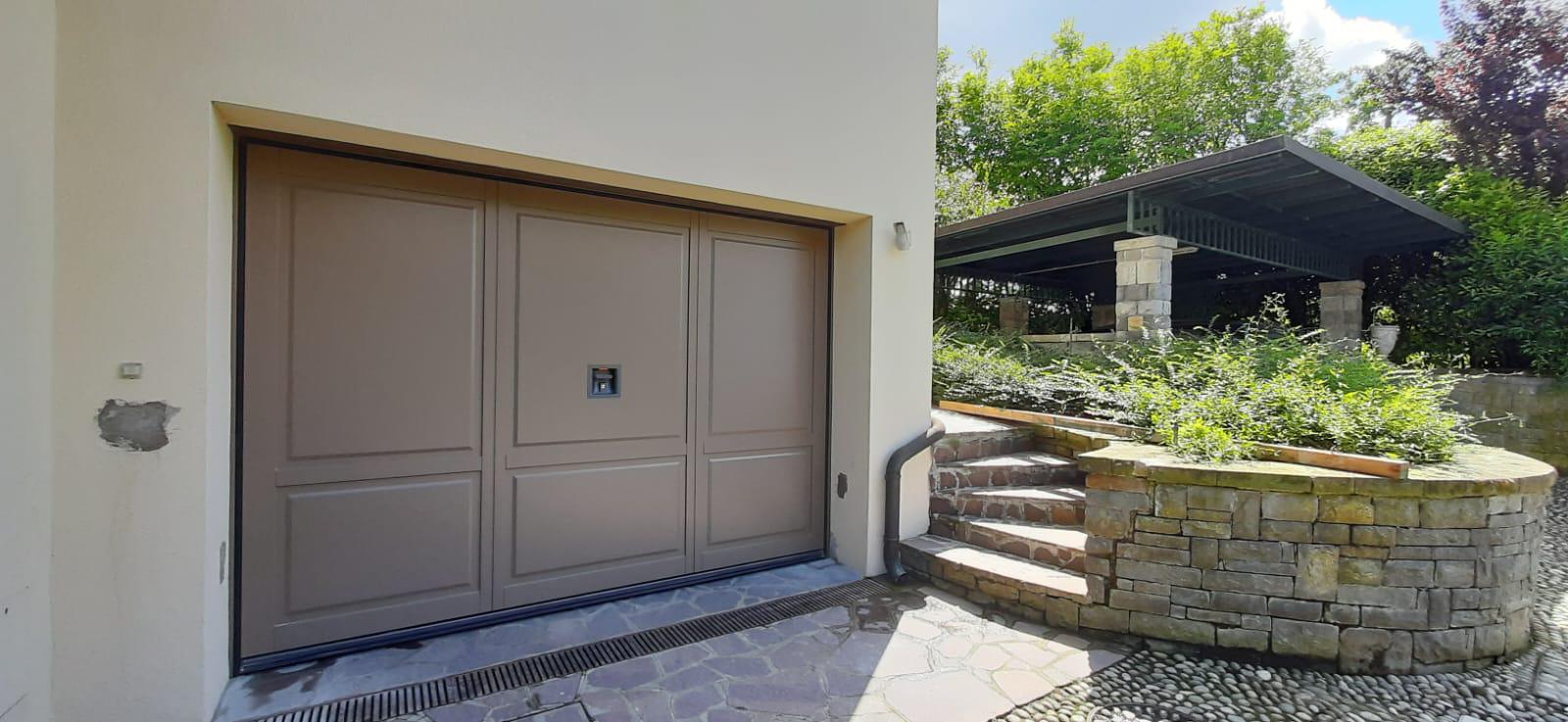

Up&Over garage door
This garage door is equipped with rails in a way that each panel is not separated and one entire panel moves, and some models are rail-free using supports. It also acts as a canopy in front of the garage door when the door is opened through a single panel. However, the structure is less stable because the number of supporting parts is smaller than the standard type, and in case of damage to the panel, it costs a lot of money because the entire panel needs to be replaced
Side garage door
Unlike other Garage door, it opens sideways rather than upwards, and is divided into sliding and folding methods in detail. This method is usually used when the ceiling is low and it is difficult to install a general type of Garage. However, not only the top but also the bottom of the rail are structurally inserted, and in the case of the lower rail, frequent entry and exit may cause damage and foreign substances to pile up. If there is no lower rail, the door is not supported stably and is structurally unstable.
Roll-up garage door
It is the same concept as a regular rolling shutter door, but it is made by using aluminum or panels for a neat appearance, and recently, high speed aluminum doors are also applied to garage doors. All parts are aluminum, so it has a neat appearance, wide space utilization, fast opening and closing speed (in the case of high-speed type), etc. are advantages.
Opener
Motor
The motor is divided into two detailed ways, applied to nearly 90 percent of the garage doors.
general style
in this style, there is a motor and a motor guide track, where the connections that move the track are directly connected to the top of the door and move the door. Apply a chain or belt to the inside of the rail. In this way, the motor lifts the door in automatic mode, and in manual mode, the door can be opened and closed directly by a human force by removing the rail and the upper connection.
wall-mount style
The European method is to rotate the counter balance shaft with a motor connected directly to the counter balance shaft, which lifts the door throughout the spring and cable drum. This approach has the advantage of eliminating the need for a motor guide track in the middle, but manually turning the connected chain of the motor is required when operated manually. Also, all weights are concentrated on the steel wire, so you have to check the steel wire frequently.
Hydraulic pressure
Used hydraulically when the door is very large or heavy. This is mostly applied to one-piece types and forms a large canopy in front of the door.
Material
Most hardware or panels are available in both steel and aluminum. But for panels, there are other options such as glass, PVC, etc.
Steel
It is the most commonly used material, which has strong durability and low price. most of all paint a lot according to personal preferences.
Aluminum
It is used for high-end purposes because it boasts a beautiful appearance with the advantage of being light. Basically, the exterior is beautiful, so change the color through anodizing rather than painting.
Glass

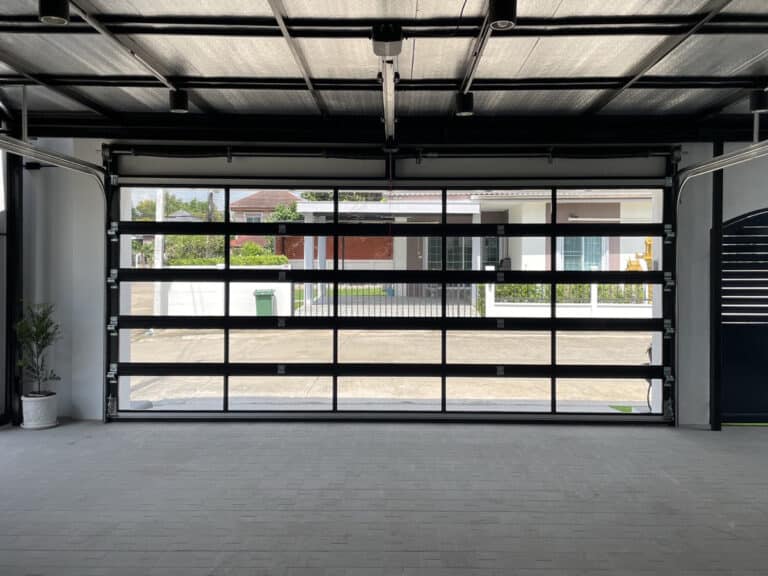

It is applied to the panel section and is used for commercial use or FULL-Vison type garage doors. Reinforced glass and polycarbonate are used.
PVC
in the case of PVC material, the weight of the door is lighter, which reduces the burden on the hardware. In addition, any color or texture you want can be implemented cheaply, but there is a disadvantage of weak security.
Insulation
It is distinguished by whether or not to put filling inside the panel. Inside, polyurethane foam is the most popular insulation.
Counterbalance System
Because the weight of the door is heavy, lifting it with the power of the motor alone is a lot of pressure, and if there is no counter balance system, manual opening and closing by human hands is almost impossible. Therefore, the counter balance system is mandatory for garage doors.
Torsion spring
It is located on the top of the door and provides a force to the door. This method requires a little more space than the tensile spring method at the top, but its durability and stability are stronger than the tensile spring method.
Extension spring
The extension spring method is located on the guide track of the door or on the frame. This approach has the advantage of being able to install the door with only a very narrow upper space, but its durability and stability are weaker than the torsional spring method, so it is not used much recently.
Counter Weights
It is a counter system that uses the principle of pulley by attaching weight weights similar to the door. Garage door companies don’t use it, but it’s a system that can be easily built when building garage doors with DIY.
Painting the garage door
It depends on the material of the garage door, but by default, it changes color the most with paint. Recently, however, we change the color by attaching stickers to the garage door. someone also expresses his personality by drawing pictures on the garage door.
Finish…
Generally, garage doors require a long period of use after installation, so you must make careful choices supplier and types of garage doors. Not only the appearance, but also the continuous service is an important factor. Please consider these points carefully and install them.
